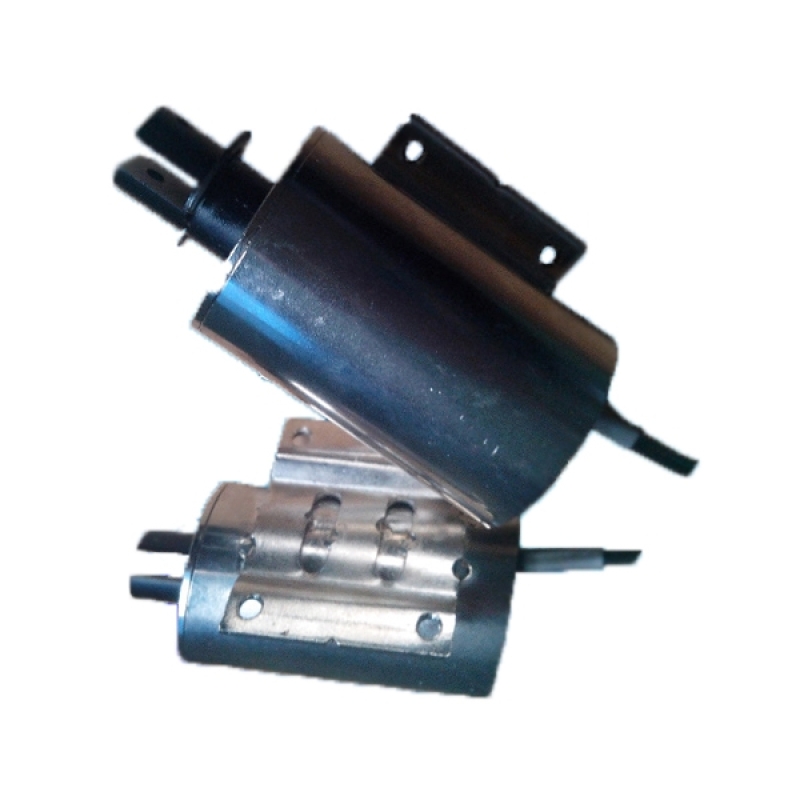

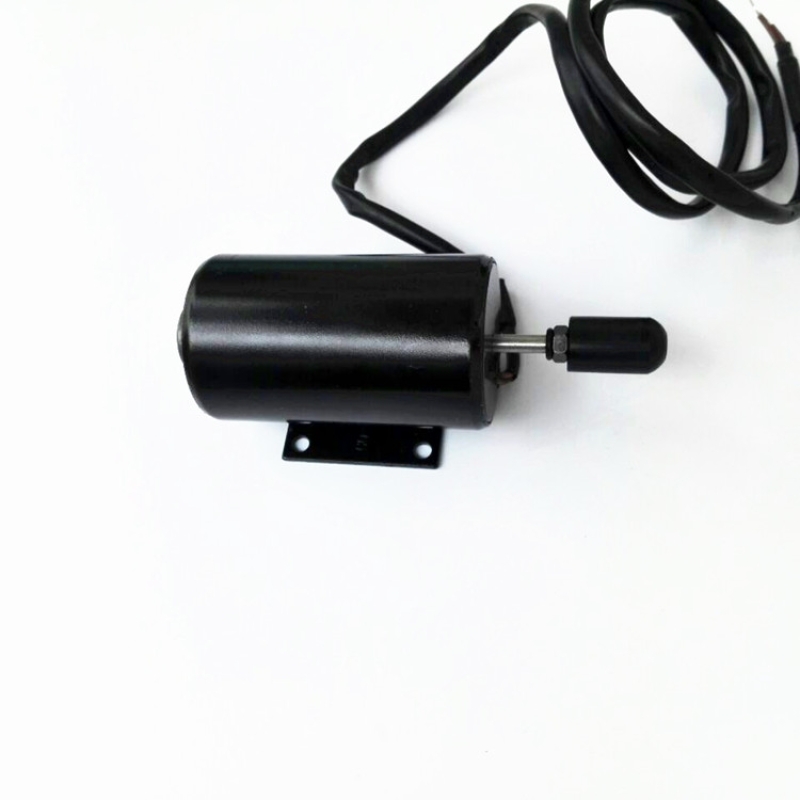

Customise Linear Tubular Solenoid NCE-T3864L/S Specification

Products Name:	tubular Solenoid NCE-T3864L/S
Mode No.:	NCE-T3864L/S
Type:	Linear Solenoid(tubular Solenoid)
Total Weight:	About 497g
Plunger Weight:	About 150g
Size:	∅39*64mm
Application:	Lock, sorting machine etc.
Work Mode:	Push & Pull
Install Mode:	Screw
Connection Mode:	Terminal
Rated Voltage (V):	6-48V DC
Power(20℃):	16-168W
Max On Time (s)	1 - Continuous Electricity
Stroke:	0-22mm
Force:	0-6000gf

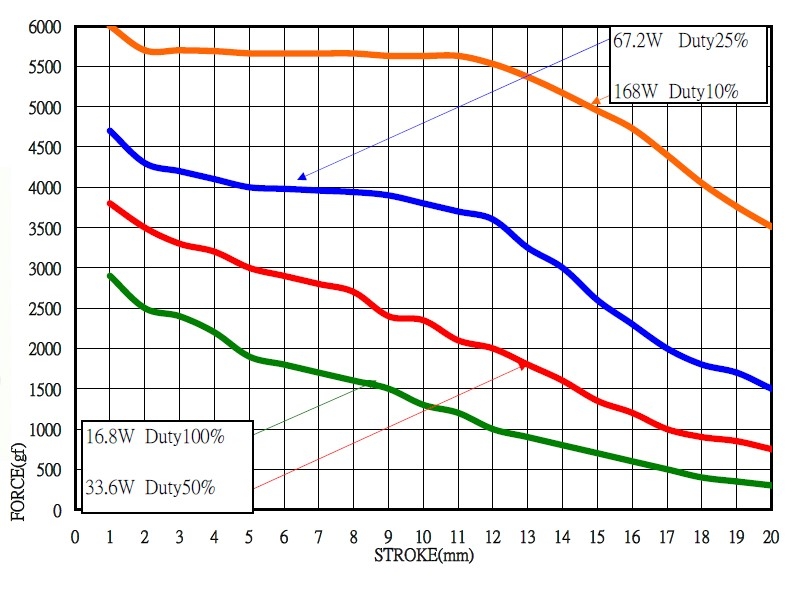

Solenoid parameter:
Voltage: 6-48V
Stroke:0-22mm

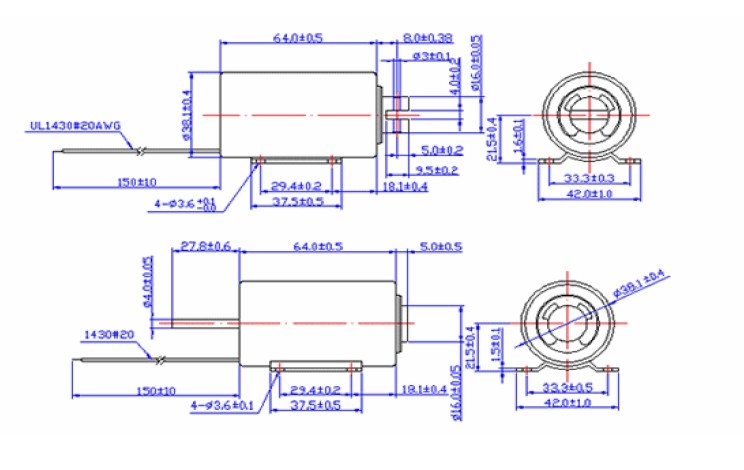

Dimension: frame ∅39*64mm
Force: 0-6000 gf
Plunger: push/pulls
