Frame Solenoids

Customise Linear Push Pull Solenoid NCE-1253L/S Specification

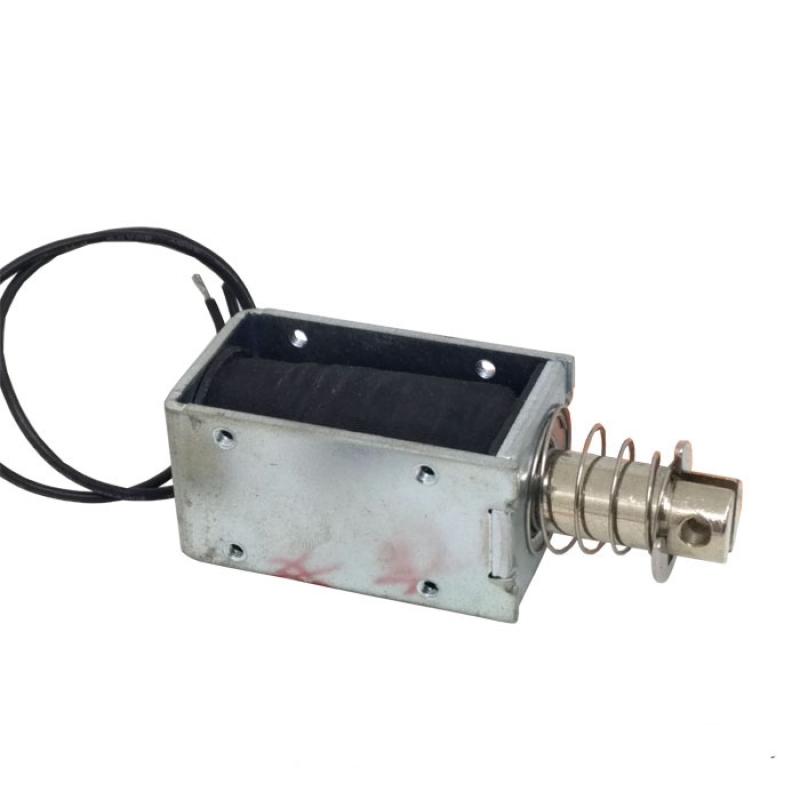

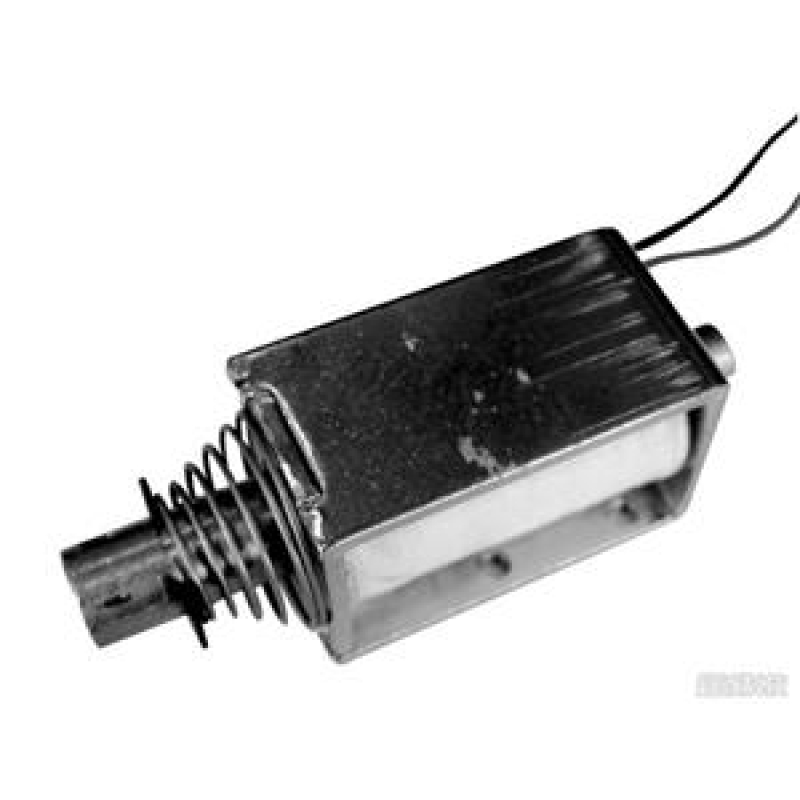

Products Name: Open frame Solenoid NCE-1253L/S
Mode No.: NCE1253L/S
Type: Linear Solenoid(Push/Pull type Solenoid)
Total Weight: About 205g
Plunger Weight:  About 50g
Size:  53*30*27mm
Application:  Punch Clock Lock, vending machine, game gun etc.
Work Mode: Push & Pull
Install Mode: Screw
Connection Mode: Terminal
Rated Voltage (V): 6-48V DC
Power(20): 6-60W
Max On Time (s) 1 - Continuous Electricity
Stroke: 0-15mm
Force: 0-3500gf
Solenoid parameter:
Voltage: 3-48V
Stroke:0-15mm

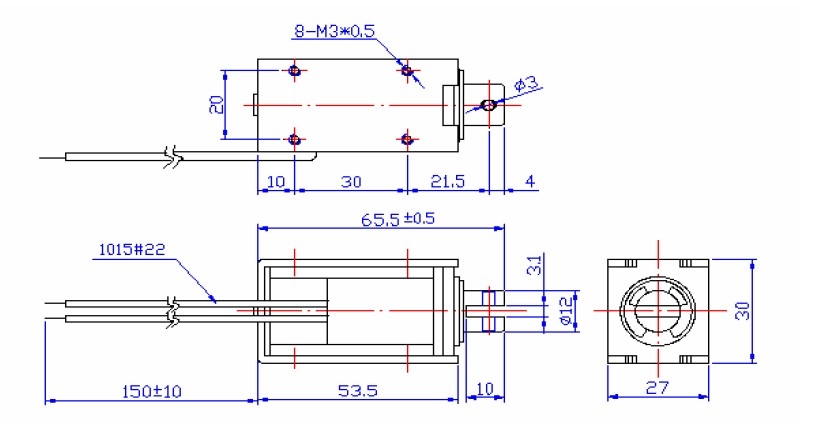

Dimension: frame 53*30*27mm

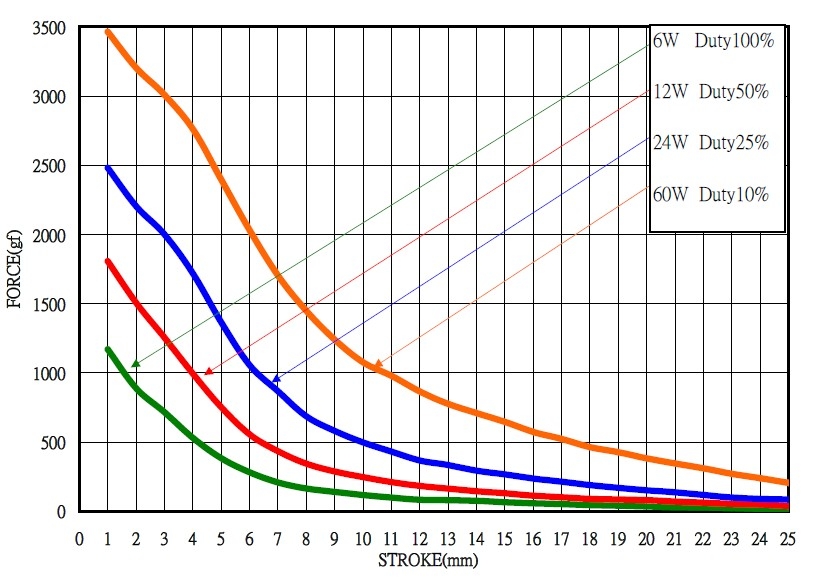

Force: 0-3500 gf
Plunger: push/pull
